Home // Products // Industrial Coarse Crusher Machine

Industrial Coarse Crusher Machine Front View

Industrial Coarse Crusher Machine Operator Panel

Industrial Coarse Crusher Machine Detail

Crushing Machine

Industrial Coarse Crusher Machine for Powder Processing

A coarse crusher that breaks raw materials into flakes or granules, and serves as a primary crusher before fine grinding.

Heavy-duty structure for continuous industrial operation
Efficient crushing performance for large raw materials
Stable operation with reliable mechanical design
Easy maintenance and cleaning
Suitable for customized powder processing systems
Food Grade SUS304
CE Standard
Custom Engineering

Send Inquiry Back to Products

Industrial Coarse Crusher Machine Description

An industrial coarse crusher machine is a primary crushing equipment used to reduce large materials into suitable sizes before further processing.

PURSYS coarse crushers feature a strong structure, stable operation and reliable crushing performance for continuous industrial production.

The equipment helps manufacturers improve production efficiency by preparing materials for the next grinding stage.

Large materials are broken into smaller particles through impact and cutting action, making them easier to process in grinding systems.

Machine Structure and Details

The coarse crusher is designed with a durable crushing chamber, reliable transmission system and easy-maintenance structure.

Detailed design improvements ensure stable operation, convenient cleaning and long service life in industrial environments.

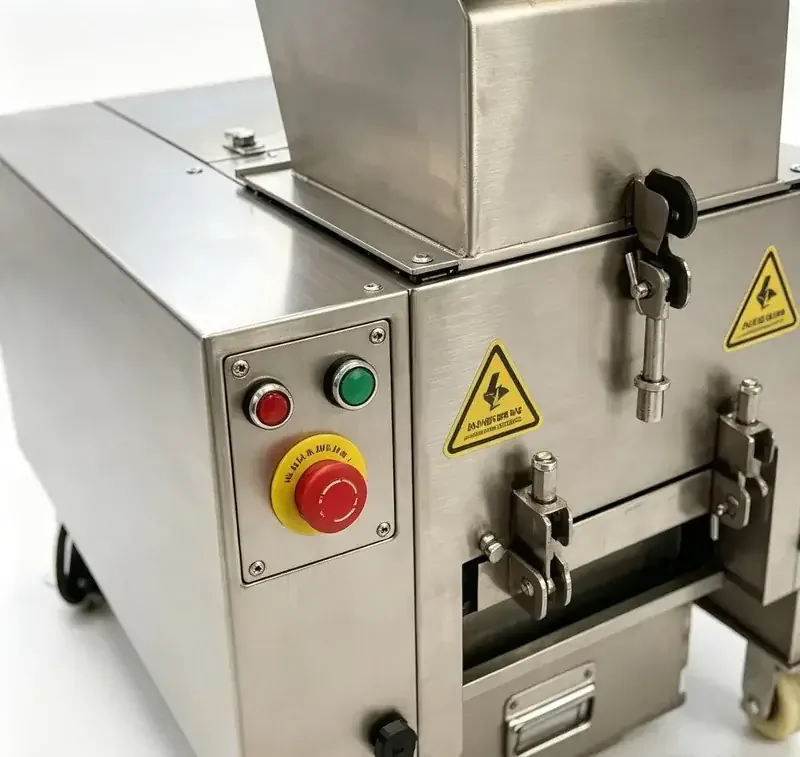

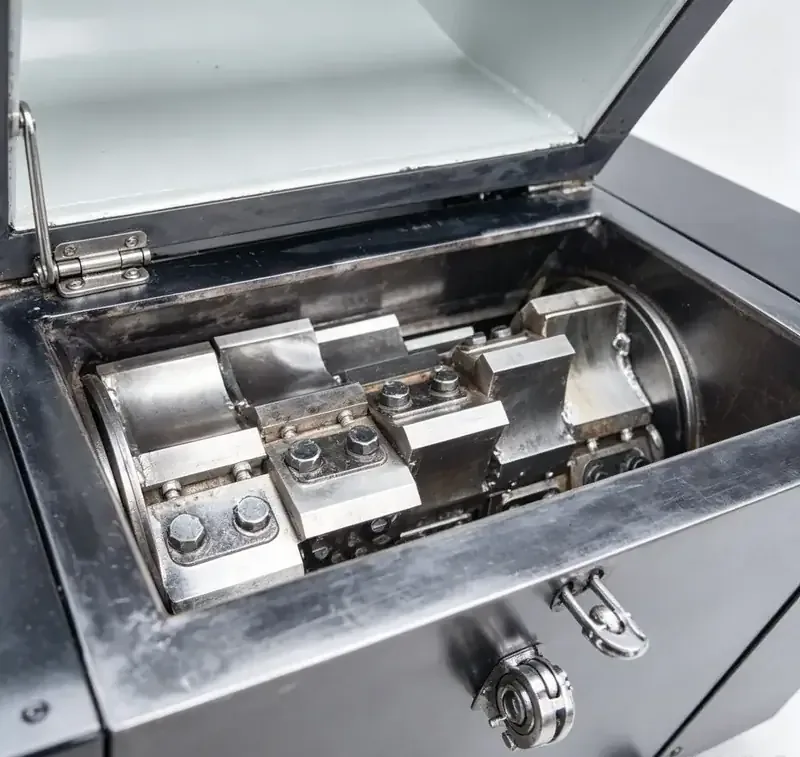

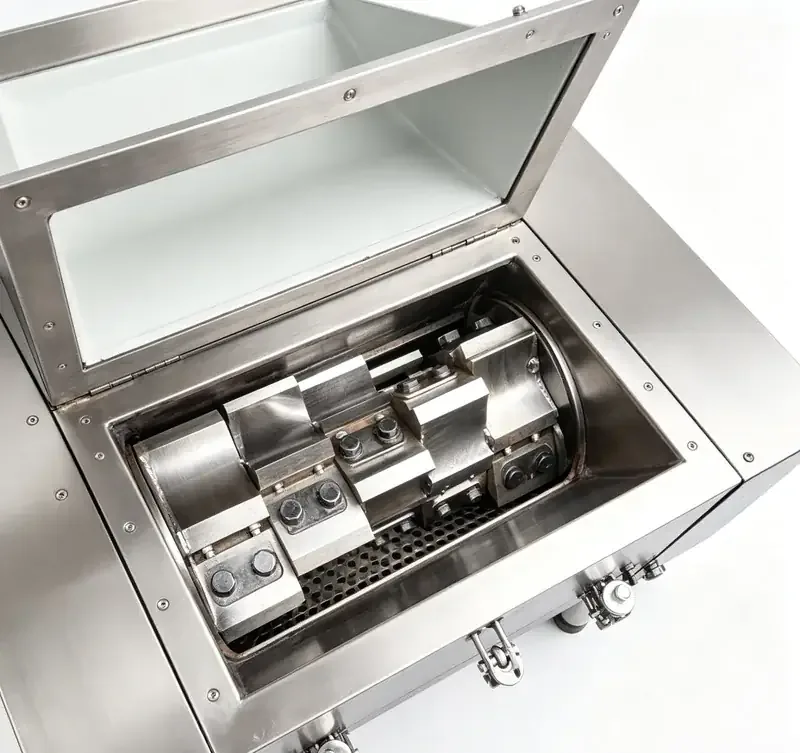

Detailed Images

Key Features of Industrial Coarse Crusher Machine

Heavy-duty structure for continuous industrial operation
Efficient crushing performance for large raw materials
Stable operation with reliable mechanical design
Easy maintenance and cleaning
Suitable for customized powder processing systems

Applications of Industrial Coarse Crusher Machine

Food Processing Industry
Used for preparing food ingredients before fine grinding, including grains, spices and agricultural materials.

Pharmaceutical Industry
Suitable for initial crushing of dried herbs and natural materials before powder production.

Chemical Industry
Used for reducing industrial raw materials into suitable particle sizes.

Agricultural Processing
Helps process agricultural products before further grinding and production.

Technical Parameters

Technical specifications of PURSYS coarse crusher machines can be customized according to material characteristics, production capacity and final processing requirements.

Model	P10-180	P10-300	P10-400	P10-500	P10-600	P10-800	P10-1000
Capacity (kg/h)	20–60	80–200	150–400	200–600	300–900	800–2500	1000–4000
Feed Size (mm)	≤ 100 (depends on material)
Output Size (mesh)	4–50 mm
Total Power (kW)	2.2	5.5	7.5	11	15	30	45
Dimensions (mm)	830×525×930	1160×750×1160	1260×850×1170	1550×970×1380	1640×1110×1550	2400×1500×2010	2400×1700×2300
Weight (kg)	160	350	430	630	800	1800	3100
Material	SUS304 / SUS316L contact parts

Powder Processing Workflow

1Coarse Crushing → 2Pulverizing → 3Drying → 4Mixing → 5Screening → 6Conveying → 7Packaging

Bottom Line

Place the PURSYS coarse crusher at the front of your line to break raw material into flakes or granules before fine grinding - it protects downstream mills in food, chemical and agricultural processing.

Related Applications

Animal Feed Powder Processing

Crushing, mixing and packing lines for animal feed and premix powder production.

Learn More

Other Powder Processing

Custom powder processing solutions for food, mineral and specialty material applications.

Learn More

Get Your Powder Processing Solution

Tell us your raw material, required capacity and final powder requirements. PURSYS engineers will provide a suitable equipment solution.

Send Material Information

Frequently Asked Questions

What materials can the Industrial Coarse Crusher Machine process?

The Industrial Coarse Crusher Machine is suitable for processing various ores, minerals, salts, sugar, spices, bones, plastics and other brittle or medium-hard materials. For your specific material, hardness, moisture and required fineness, please share details so our engineers can confirm suitability and recommend the right configuration.

What is the production capacity of this machine?

Production capacity depends on the material characteristics, required particle size and machine model. PURSYS provides different models and configurations to meet various capacity requirements. Please contact us with your target capacity for a precise recommendation.

Can you customize the voltage and motor for our market?

Yes. Voltage (such as 220V/380V/415V), motor brand, frequency and control panel can be customized to match your local power standard and workshop requirements.

What is the delivery time / lead time?

Lead time depends on the machine model, configuration and order quantity. Standard machines usually require a shorter production period, while customized production lines need additional manufacturing and testing time. Exact delivery time is confirmed after order details are finalized.

How do you provide after-sales service and spare parts?

PURSYS provides technical support, installation and operation guidance, spare parts supply and responsive communication in English and Chinese. We also support export shipment and overseas customer service.
