A high-speed hammer mill that pulverizes materials into uniform fine powder by the impact of rotating hammer blades against a sieving screen.
PURSYS Industrial Hammer Mill Grinder is a high-performance grinding machine designed for crushing and pulverizing various dry materials into fine powder.
With efficient hammer impact technology and reliable industrial structure, the machine provides stable powder production for food, agricultural, chemical and industrial applications.
The hammer mill grinder can be integrated into complete powder processing systems including crushing, screening, conveying and packaging equipment.
An industrial hammer mill grinder is a size reduction machine that uses high-speed rotating hammers to impact and crush materials into smaller particles.
PURSYS hammer mills are designed for continuous operation, high grinding efficiency and consistent powder quality.
The equipment is suitable for manufacturers requiring reliable powder processing solutions with flexible production capacity.
The repeated impact force breaks the material into smaller particles. The final powder size can be controlled through different screen configurations.

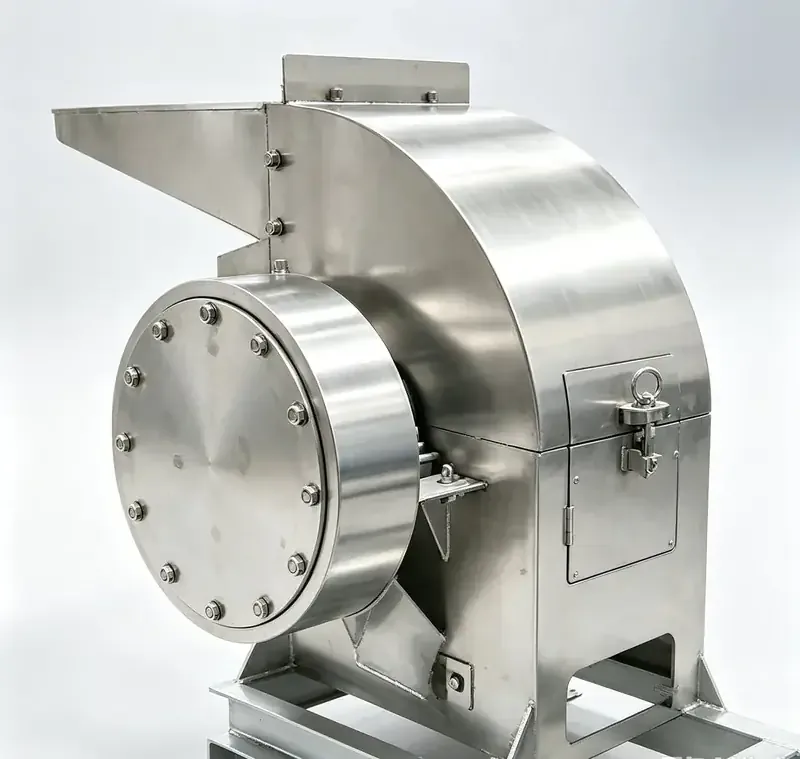

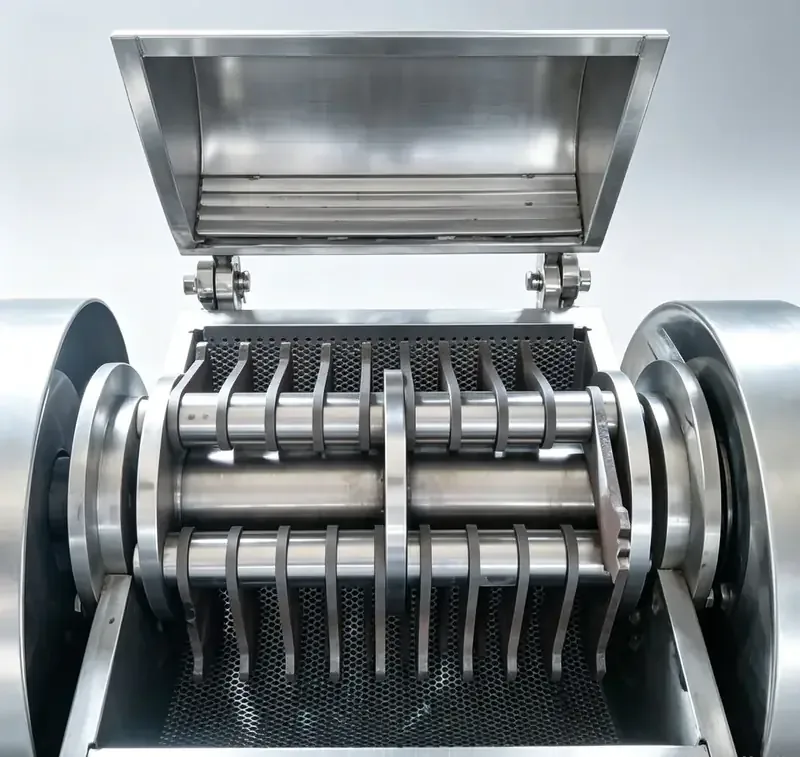

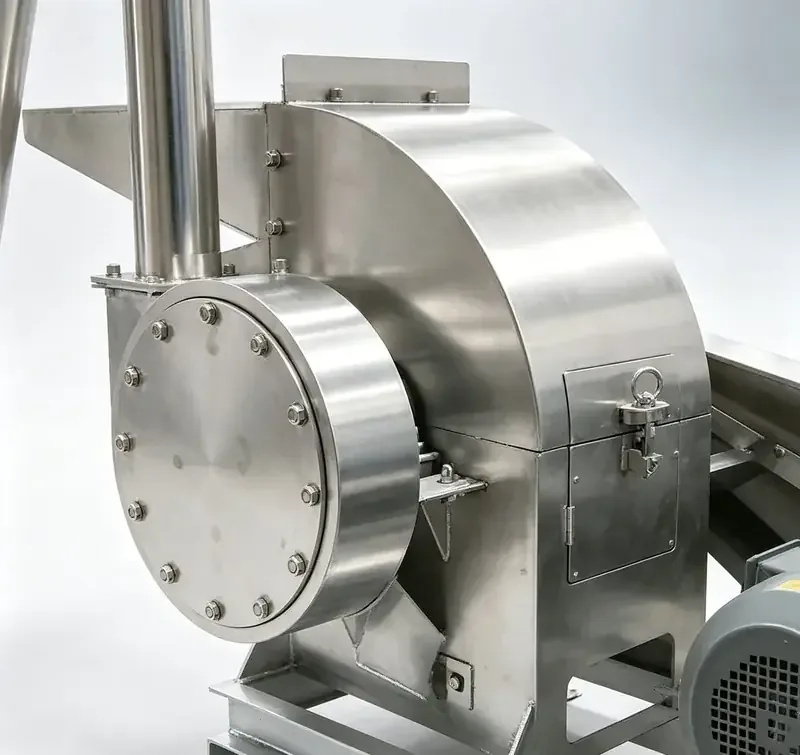

PURSYS hammer mill grinders feature a durable grinding chamber, high-strength rotating components and an easy-maintenance structure.
The machine design focuses on stable operation, efficient material processing and long service life.
The PURSYS hammer mill turns a wide range of dry materials into uniform powder. Typical applications across food, spice, agriculture and chemical industries:
The PURSYS hammer mill produces uniform powder across a wide fineness range. The samples below show five common materials — Chinese herb, cocoa bean, pepper, red chili, and turmeric — ground from coarse 20 mesh to fine 200 mesh.
| Model | P12-180 | P12-250 | P12-350 | P12-450 | P12-550 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 20–150 | 50–300 | 100–500 | 200–800 | 400–1200 |
| Input Size (mm) | ≤ 12 (depends on material) | ||||
| Output Size (mesh) | 10–120 (via screen) | ||||
| Rotary Speed (rpm) | 4200 | 3800 | 3400 | 3000 | 2800 |
| Total Power (kW) | 2.2 | 4 | 7.5 | 11 | 15 |
| Dimensions (mm) | 550×600×1250 | 650×700×1350 | 800×850×1500 | 950×1000×1650 | 1100×1150×1800 |
| Weight (kg) | 120 | 200 | 350 | 520 | 700 |
| Material | SUS304 / SUS316L contact parts | ||||
Parameters are for reference only; final specifications are confirmed after we review your material and process requirements.
The PURSYS hammer mill is a general-purpose fine-powder workhorse - high-speed rotating blades against a sieving screen produce uniform powder across food, chemical and industrial materials, with spare hammers supplied.
