A versatile toothed-disc mill that rapidly processes grains, spices, herbs, chemicals, feed and biomass into fine granules or powder.

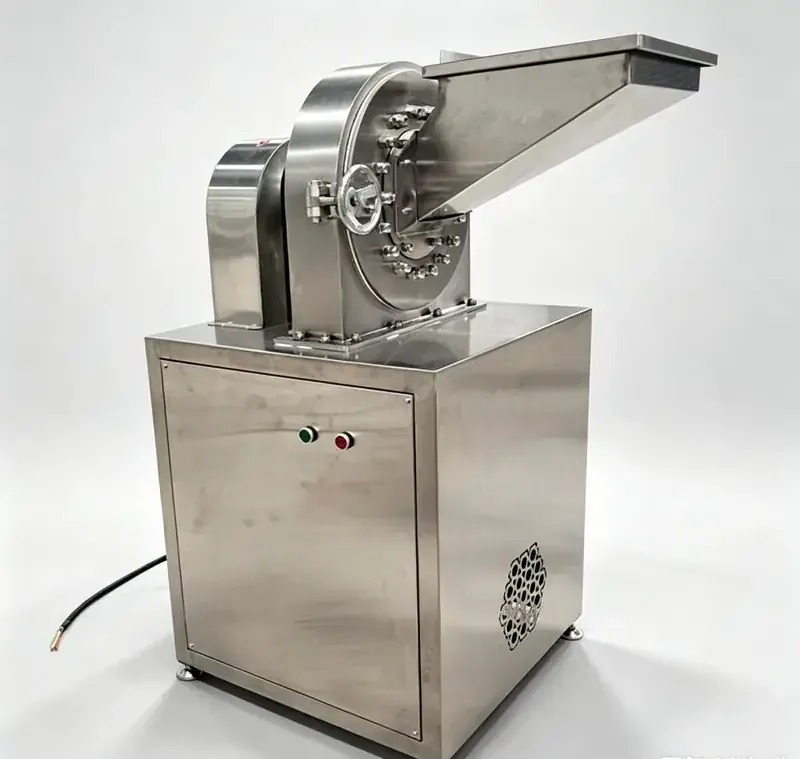

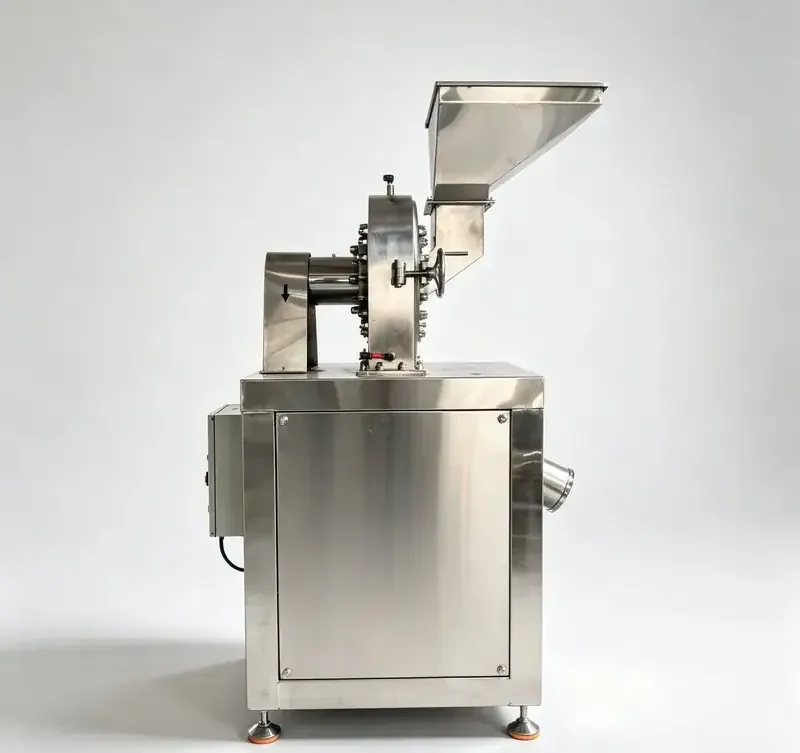

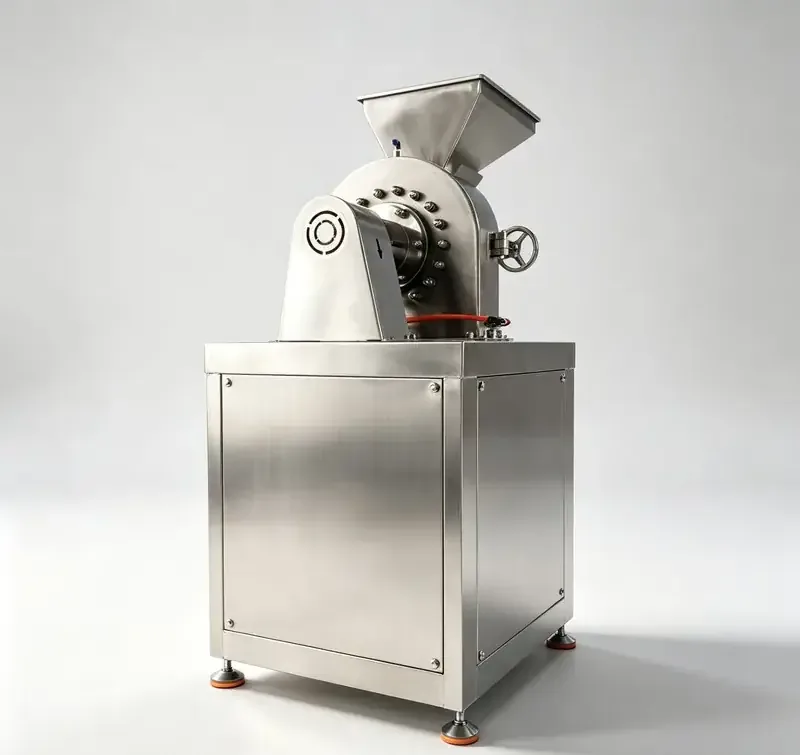

PURSYS Universal Pin Mill Grinder is a high-efficiency grinding machine designed for producing fine powders with consistent particle size.
The machine is widely used for food, spice, pharmaceutical, chemical and industrial powder processing applications.

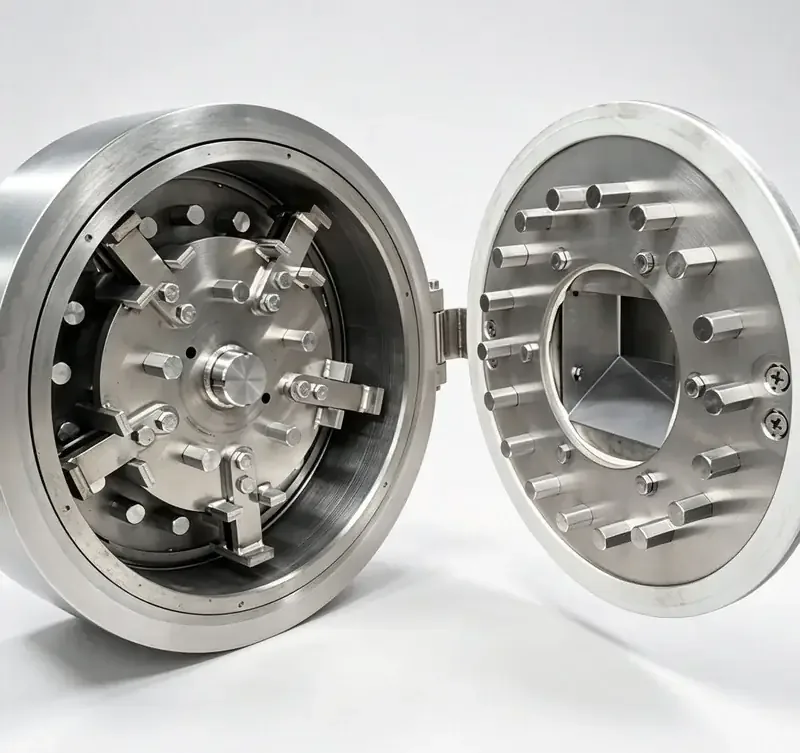

A universal pin mill grinder uses high-speed rotating pins to create impact and grinding forces, producing fine and uniform powder.
It is suitable for materials requiring precise particle size control and high-quality powder output.
The finished powder size can be adjusted according to production requirements.
The PURSYS pin mill turns a wide range of dry materials into uniform powder. Typical applications across food, spice, agriculture and chemical industries:
The PURSYS pin mill produces uniform powder across a wide fineness range. The samples below show five common materials — Chinese herb, cocoa bean, pepper, red chili, and turmeric — ground from coarse 20 mesh to fine 200 mesh.
| Model | P11-300 | P11-400 | P11-500 | P11-600 | P11-800 | P11-1000 |
|---|---|---|---|---|---|---|
| Capacity (kg/h) | 60–150 | 100–300 | 160–800 | 300–1000 | 400–2000 | 500–3000 |
| Feed Size (mm) | 6 | 6 | 10 | 12 | 12 | 12 |
| Fineness (mesh) | 20–120 | 20–120 | 20–120 | 20–120 | 20–120 | 20–120 |
| Total Power (kW) | 4–5.5 | 7.5 | 11 | 22 | 30 | 45 |
| Dimensions (mm) | 850×550×1200 | 900×600×1400 | 1350×750×1400 | 1500×800×1450 | 1750×900×1500 | 2100×900×1750 |
| Weight (kg) | 130 | 190 | 450 | 530 | 620 | 880 |
| Material | SUS304 / SUS316L contact parts | |||||
Parameters are for reference only; final specifications are confirmed after we review your material and process requirements.
The PURSYS pin mill handles grains, spices, herbs, chemicals, feed and biomass in one versatile toothed-disc design, delivering fine, consistent powder for multi-product plants.
