Horizontal U-trough mixer for uniform blending of dry powders, granules and small batches.
PURSYS Industrial U Shape Powder Mixer is designed for efficient and uniform mixing of powder, granular and dry materials.
The U-shaped mixing chamber provides smooth material movement and consistent blending performance, making it suitable for various industrial production processes.
It is widely used in food processing, pharmaceutical production, chemical manufacturing, agricultural material processing and powder production lines.
An industrial U shape powder mixer is a horizontal mixing machine designed for blending different powder and granular materials evenly.
The unique U-shaped chamber design helps reduce dead zones and improves mixing efficiency, ensuring stable product quality.
PURSYS provides customized mixer solutions according to material characteristics, production capacity and processing requirements.
The continuous movement creates uniform blending between different components, producing consistent final products.

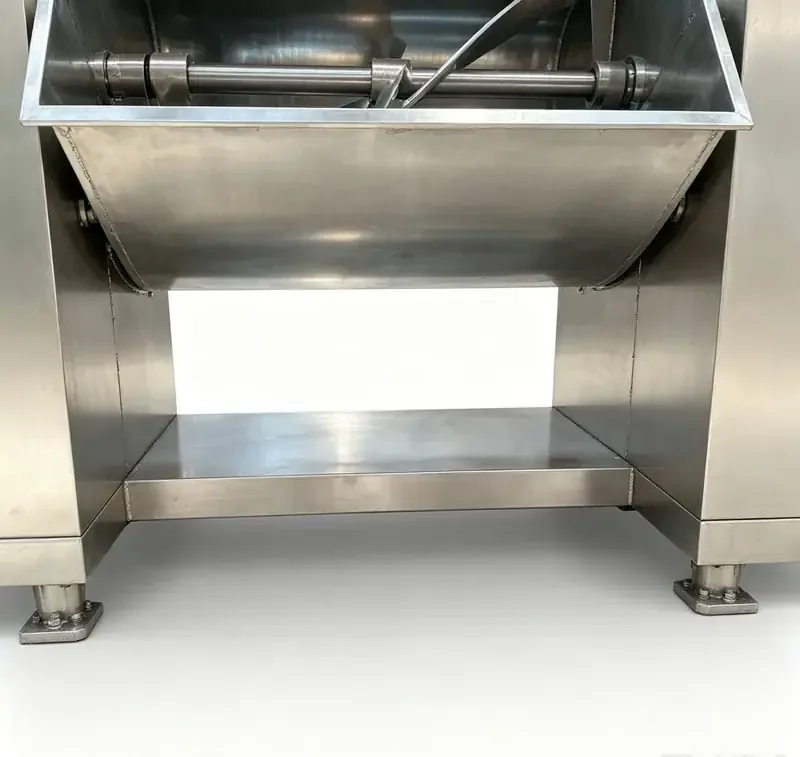

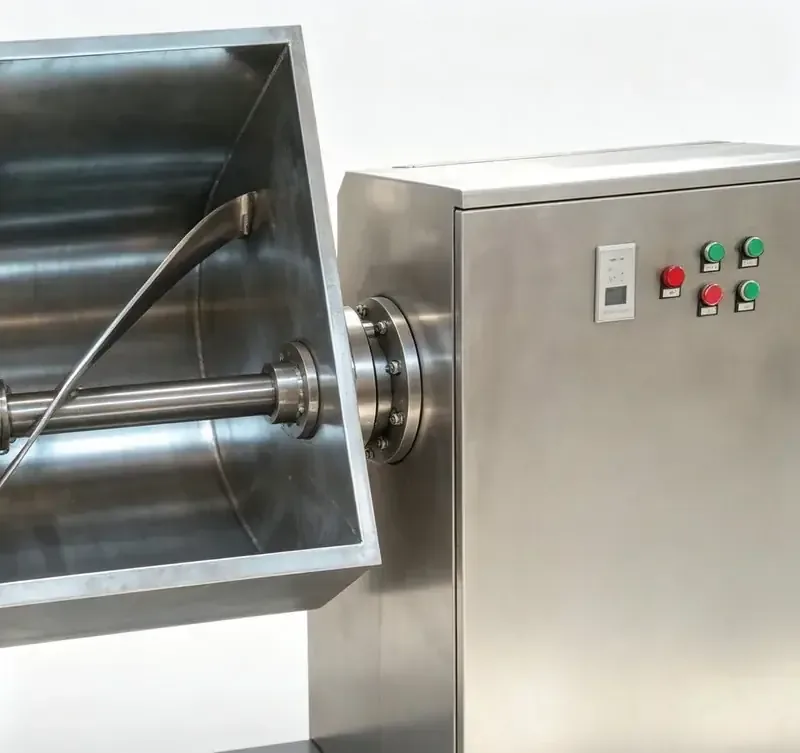

The U shape powder mixer features a stainless steel mixing chamber, reliable transmission system and optimized blade design.
The structure supports easy cleaning, stable operation and long-term industrial production.
| Model | P20-100 | P20-200 | P20-300 | P20-500 | P20-1000 |
|---|---|---|---|---|---|
| Mixer Volume (L) | 100 | 200 | 300 | 500 | 1000 |
| Power (kW) | 1.5 | 3.0 | 3.0 | 7.5 | 11 |
| Inner Dimensions (mm) | 750×500×600 | 1000×550×650 | 1200×680×780 | 1500×850×900 | 1150×1500×1200 |
| Overall Dimensions (mm) | 1400×580×1150 | 1700×630×1300 | 2300×760×1400 | 2700×930×1600 | 3000×1150×1900 |
| Weight (kg) | 180 | 320 | 550 | 880 | 1300 |
| Material | SUS304 / SUS316L contact parts | ||||
Parameters are for reference only; final specifications are confirmed after we review your material and process requirements.
Used for mixing seasoning powders, flour, food ingredients and dry food materials.
Suitable for blending pharmaceutical and herbal powders.
Used for mixing chemical powders and industrial materials.
Suitable for fertilizer powder and agricultural material mixing.
Blend dry powders and granules uniformly in small to mid batches with the PURSYS U-shape mixer - its horizontal U-trough design gives consistent results for food, chemical and industrial use.
