Chili Powder Grinding Machine for Industrial Chili Processing

A dedicated chili powder mill that pulverizes dried chili, paprika and pepper into uniform fine chili powder by the impact of high-speed hammer blades against a sieving screen.

Designed specifically for chili powder production
High grinding efficiency
Uniform powder particle size
Suitable for continuous production
Easy operation and maintenance
Food Grade SUS304
Capacity: 100–1000kg/h
20–120 Mesh
CE Standard
Custom Engineering

Send Inquiry Back to Products

Product Description

PURSYS Chili Powder Grinding Machine is designed specifically for producing high-quality chili powder from dried chili materials.

The machine provides efficient grinding performance, stable powder output and consistent particle size for commercial chili processing factories.

It can be used as a standalone machine or integrated into complete chili powder production lines.

Industrial chili powder grinding machines reduce dried chili materials into fine powder through high-speed grinding technology.

PURSYS equipment is designed to improve production efficiency while maintaining consistent chili powder quality.

The powder size can be adjusted according to different market requirements.

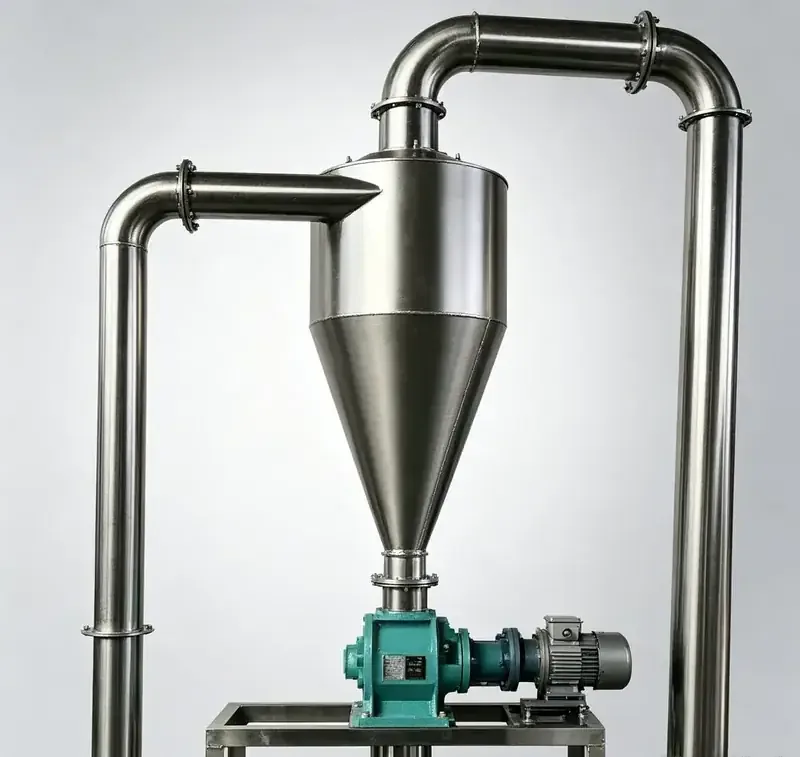

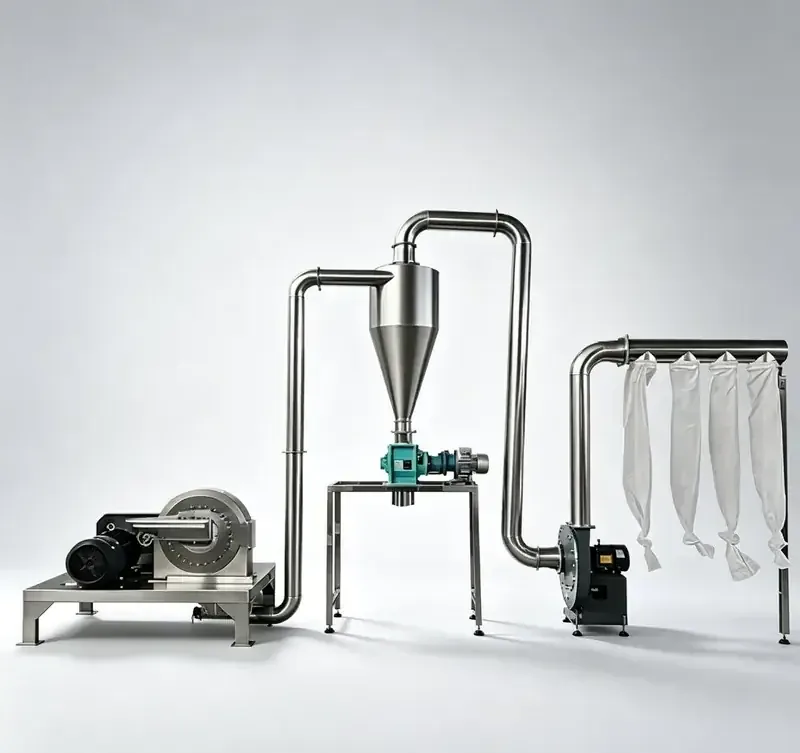

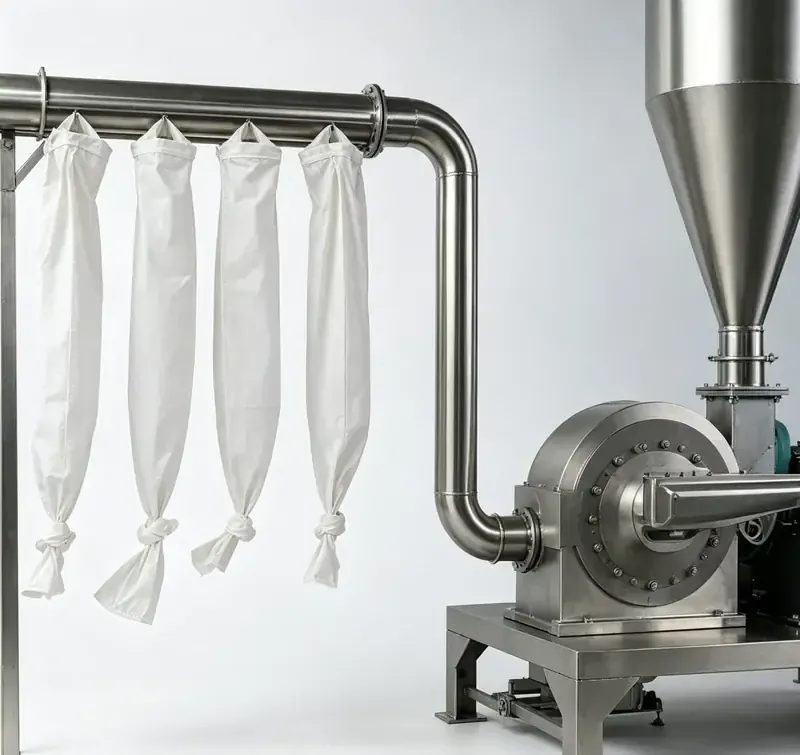

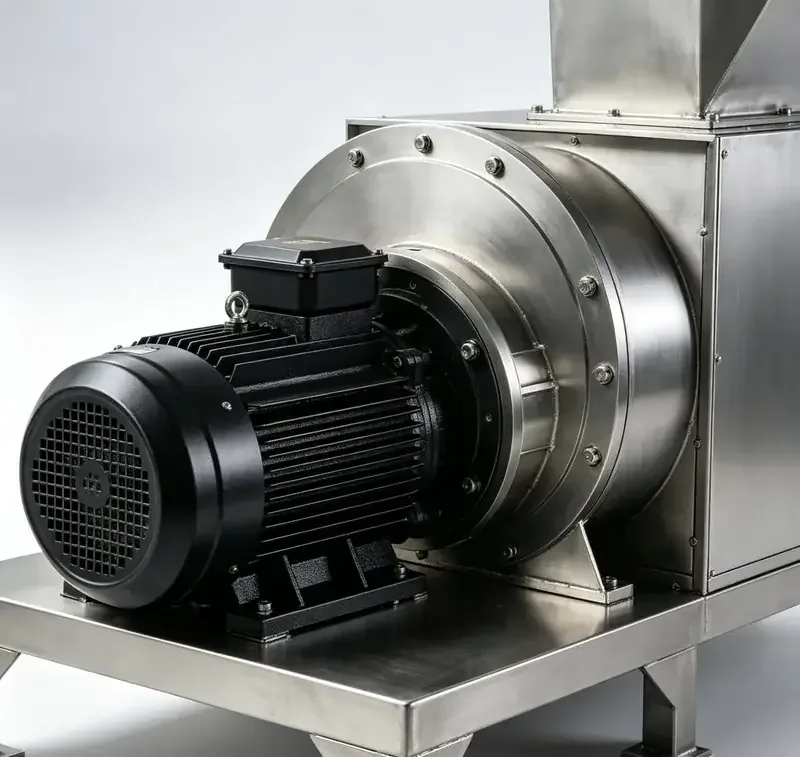

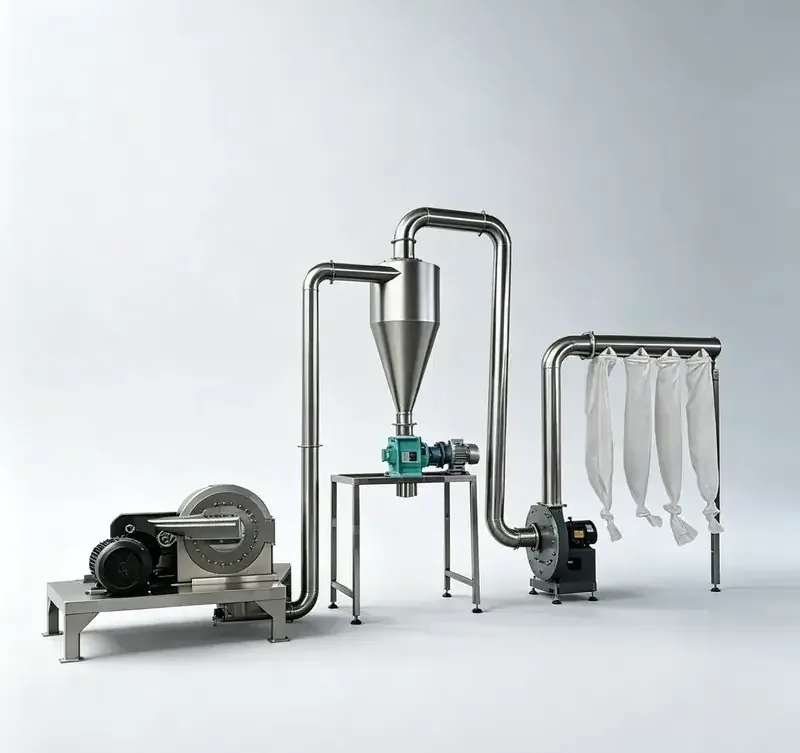

Detailed Images

Key Features

Designed specifically for chili powder production
High grinding efficiency
Uniform powder particle size
Suitable for continuous production
Easy operation and maintenance

Applications

The PURSYS chili powder mill turns a wide range of dry materials into uniform powder. Typical applications across food, spice, agriculture and chemical industries:

Finished Powder (20–200 Mesh)

The PURSYS chili powder mill produces uniform powder across a wide fineness range. The samples below show five common materials — Chinese herb, cocoa bean, pepper, red chili, and turmeric — ground from coarse 20 mesh to fine 200 mesh.

Chinese herb powder 20 to 200 mesh comparison — Chinese Herb Powder (20–200 Mesh)

Cocoa bean powder 20 to 200 mesh comparison — Cocoa Bean Powder (20–200 Mesh)

Pepper powder 20 to 200 mesh comparison — Pepper Powder (20–200 Mesh)

Red chili powder 20 to 200 mesh comparison — Red Chili Powder (20–200 Mesh)

Turmeric powder 20 to 200 mesh comparison — Turmeric Powder (20–200 Mesh)

Technical Parameters

Model	P11-300	P11-400	P11-500	P11-600	P11-800	P11-1000
Capacity (kg/h)	60–150	100–300	160–800	300–1000	400–2000	500–3000
Feed Size (mm)	6	6	10	12	12	12
Fineness (mesh)	20–120	20–120	20–120	20–120	20–120	20–120
Total Power (kW)	4–5.5	7.5	11	22	30	45
Dimensions (mm)	850×550×1200	900×600×1400	1350×750×1400	1500×800×1450	1750×900×1500	2100×900×1750
Weight (kg)	130	190	450	530	620	880
Material	SUS304 / SUS316L contact parts

Parameters are for reference only; final specifications are confirmed after we review your material and process requirements.

Powder Processing Workflow

1Coarse Crushing → 2Pulverizing → 3Drying → 4Mixing → 5Screening → 6Conveying → 7Packaging

Bottom Line

For industrial chili, paprika and pepper processing, the PURSYS chili powder mill delivers uniform fine powder through high-speed hammer impact against a sieving screen - purpose-built for seasoning producers.

Related Applications

Spice Powder Processing

Complete grinding and packing lines that turn raw spices into uniform, aromatic powder.

Learn More

Get Your Powder Processing Solution

Tell us your raw material, required capacity and final powder requirements. PURSYS engineers will provide a suitable equipment solution.

Send Material Information

Frequently Asked Questions

What materials can the Chili Powder Grinding Machine process?

The Chili Powder Grinding Machine is suitable for processing spices, herbs, grains, sugar, food powders, pigments and chemical materials. For your specific material, hardness, moisture and required fineness, please share details so our engineers can confirm suitability and recommend the right configuration.

What is the production capacity of this machine?

Production capacity depends on the material characteristics, required particle size and machine model. PURSYS provides different models and configurations to meet various capacity requirements. Please contact us with your target capacity for a precise recommendation.

Can you customize the voltage and motor for our market?

Yes. Voltage (such as 220V/380V/415V), motor brand, frequency and control panel can be customized to match your local power standard and workshop requirements.

What is the delivery time / lead time?

Lead time depends on the machine model, configuration and order quantity. Standard machines usually require a shorter production period, while customized production lines need additional manufacturing and testing time. Exact delivery time is confirmed after order details are finalized.

How do you provide after-sales service and spare parts?

PURSYS provides technical support, installation and operation guidance, spare parts supply and responsive communication in English and Chinese. We also support export shipment and overseas customer service.
